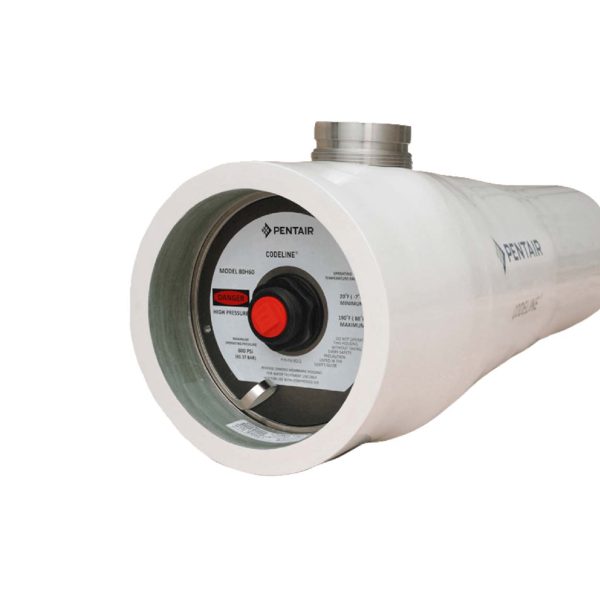

FEATURES
- Mirror finish ID for easy and quick loading and unloading of membranes
- Multiporting option available with 1.5”, 2.0”, 2.5” and 3.0” diameters for connecting vessels to each other
- Quick lock head retention system for quick access to membranes
- Exteriors coated with high-gloss polyurethane paint for UV resistance
- Head seal is captured, hence doesn’t roll during head assembly fitment
- Compatible for using in brackish, high brackish and sea water applications for respective pressure ratings
- ASME, NSF and CE certified
SPECIFICATIONS
| CODELINE 80H15 | CODELINE 80H30 | CODELINE 80H45 | CODELINE 80H60 | CODELINE 80H100 | CODELINE 80H120 | |
|---|---|---|---|---|---|---|
| Drawing no. | 99165 | 99166 | 99167 | 99168 | 99169 | 99170 |
| Design/ Max. operating pressure | 150 PSI/10 Bar | 300 PSI/20 Bar | 450 PSI/31 Bar | 600 PSI/41 Bar | 1000 PSI/68 Bar | 1200 PSI/82 Bar |
| Max. operating temperature | 190°F/ 88°C | 190°F/ 88°C | 190°F/ 88°C | 190°F/ 88°C | 150°F/ 66°C | 150°F/ 66°C |
| Qualification pressure | 900 PSI/ 62 Bar | 1800 PSI/ 124 Bar | 2700 PSI/ 186 Bar | 3600 PSI/ 248 Bar | 6000 PSI/ 413 Bar | 7200 PSI/ 496 Bar |
| Element length | 1-8 | 1-8 | 1-8 | 1-8 | 1-8 | 1-8 |
